——Applications：

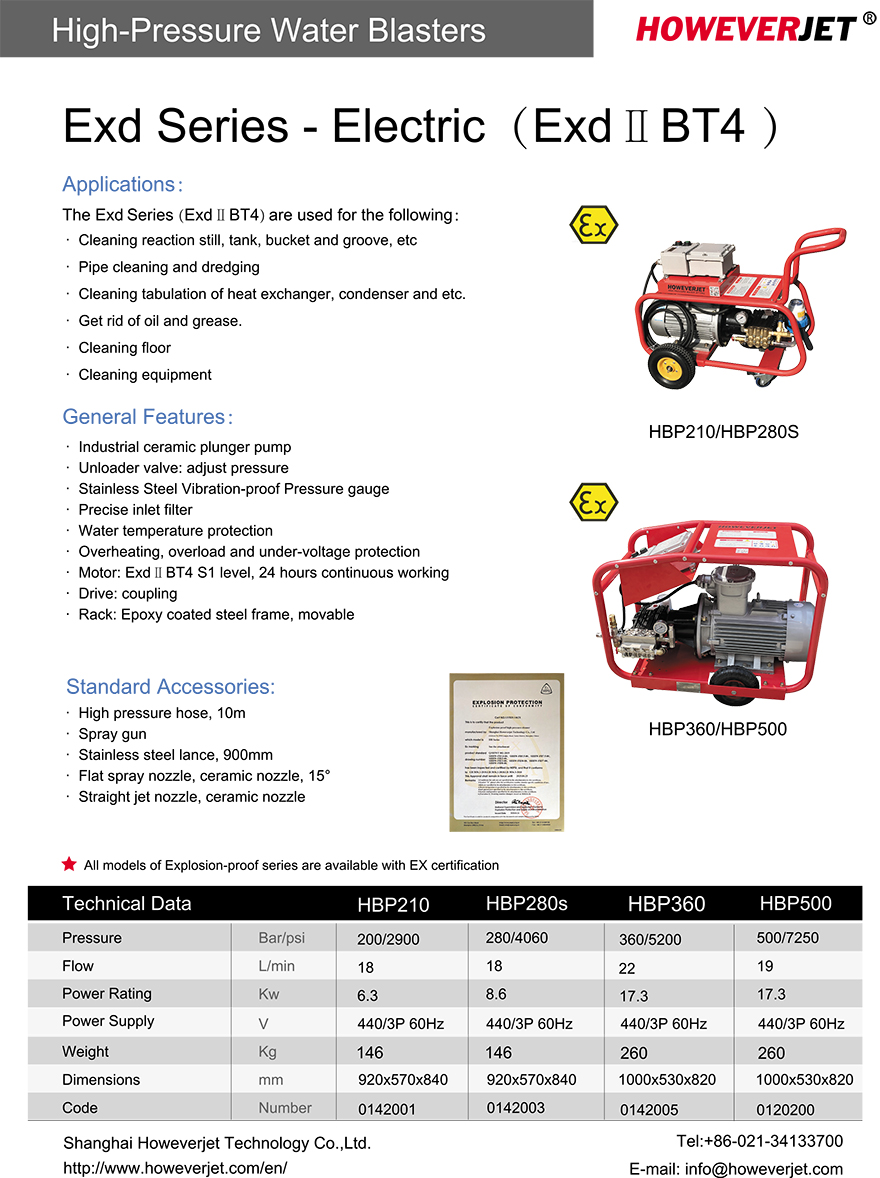

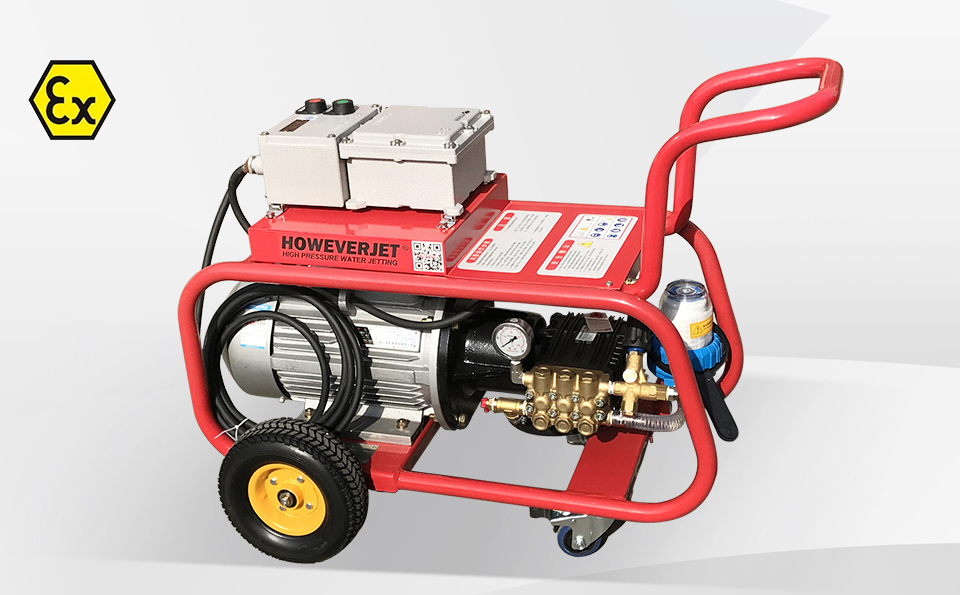

The Exd Series(Exd ∥ BT4)are used for the following:
Cleaning reaction still, tank , bucket and groove, etc ,
Pipe cleaning and dredging ,Cleaning tabulation of heat exchanger, condenser and etc ,
Get rid of oil and grease ,Cleaning floor ,Cleaning equipment.
- Technical Data
- Brochures
|
MODEL |
HBP210 |
HBP280S |
|
|
Pressure (Bar/psi) |
200/2900 |
280/4060 |
|
|
Flow (L/min) |
18 |
18 |
|
|
Power Rating (kw) |
6.3 |
8.6 | |
|
Power Supply (V) |
440/3P 60Hz |
||
|
Weight (kg) |
146 |
||
|
Dimensions (mm) |
920×570×840 |
||
|
Code |
0142001 |
0142003 |
|
|
HBP210 |
||
|
Code |
Pressure |
Flow |
|
0142001 |
200/2900 |
18 |
|
HBP280S |
||
|
Code |
Pressure |
Flow |
|
0142003 |
280/4060 |
18 |
|
General specifications |
|
|
Power Rating(Kw) |
6.3/8.6 |
|
PowerSupply(V) |
440/3P 60Hz |
|
Weight(Kg) |
146 |
|
Dimensions(mm) |
920×570×840 |
- Technical Data
- Brochures
|
MODEL |
HBP210 |
HBP280S |
|
|
Pressure (Bar/psi) |
200/2900 |
280/4060 |
|
|
Flow (L/min) |
18 |
18 |
|
|
Power Rating (kw) |
6.3 |
8.6 | |
|
Power Supply (V) |
440/3P 60Hz |
||
|
Weight (kg) |
146 |
||
|
Dimensions (mm) |
920×570×840 |
||
|
Code |
0142001 |
0142003 |
|
|
HBP210 |
||
|
Code |
Pressure |
Flow |
|
0142001 |
200/2900 |
18 |
|
HBP280S |
||
|
Code |
Pressure |
Flow |
|
0142003 |
280/4060 |
18 |
|
General specifications |
|
|
Power Rating(Kw) |
6.3/8.6 |
|
PowerSupply(V) |
440/3P 60Hz |
|
Weight(Kg) |
146 |
|
Dimensions(mm) |
920×570×840 |
