Model |
Technical Data |
|||
|
HB450/200
|
MAX. PRESSURE |
200 bar |
||
|
FLOW |
450 L/min |
|||
|
INLET |
G1-1/4F |
|||
|
OUTLET |
G1-1/4F |
|||
|
BYPASS |
G1-1/2F |
|||
|
CODE |
0610008 |
|||
|
HB200/150
|
MAX. PRESSURE |
170 bar |
||
|
FLOW |
200 L/min |
|||
|
INLET |
G1”F |
|||
|
OUTLET |
G1”F |
|||
|
BYPASS |
G1”F |
|||
|
CODE |
0610006 |
|||
|
HB85/280
|
MAX. PRESSURE |
310 bar |
||
|
FLOW |
85 L/min |
|||
|
INLET |
G1/2F |
|||
|
OUTLET |
G1/2F |
|||
|
BYPASS |
G1/2F |
|||
|
CODE |
0610005 |
|||
|
HB53
|
MAX. PRESSURE |
550 bar |
||
|
FLOW |
80 L/min |
|||
|
INLET |
G1/2F |
|||
|
OUTLET |
G1/2F |
|||
|
BYPASS |
G1/2F |
|||
|
CODE |
0610002 |
|||
|

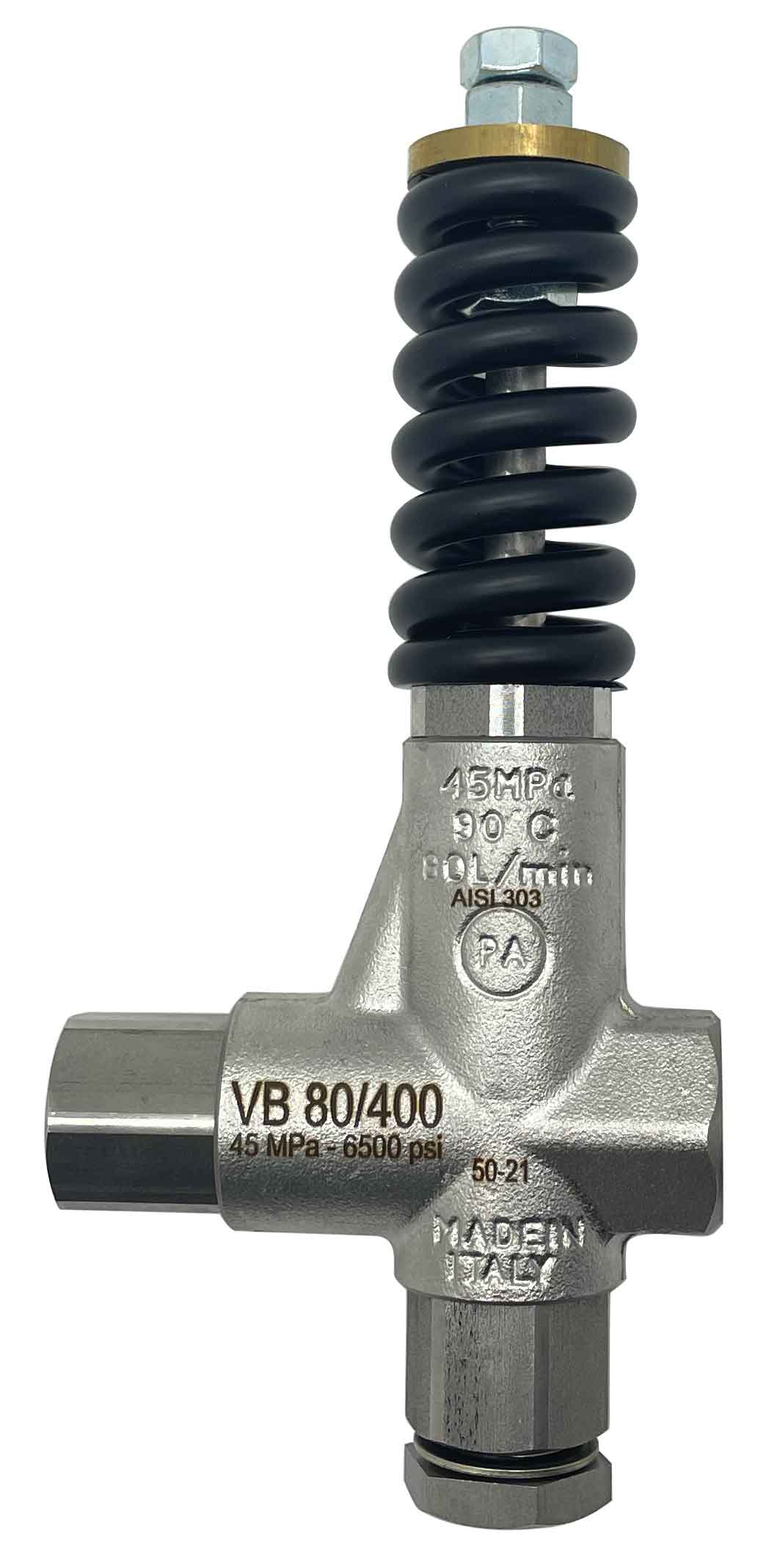

HB80/400
|
MAX. PRESSURE |
450 bar |
||
|
FLOW |
80 L/min |
|||
|
INLET |
G1/2F |
|||
|
OUTLET |
G1/2F |
|||
|
BYPASS |
G1/2F |
|||
|
CODE |
0610007 |
|||
|

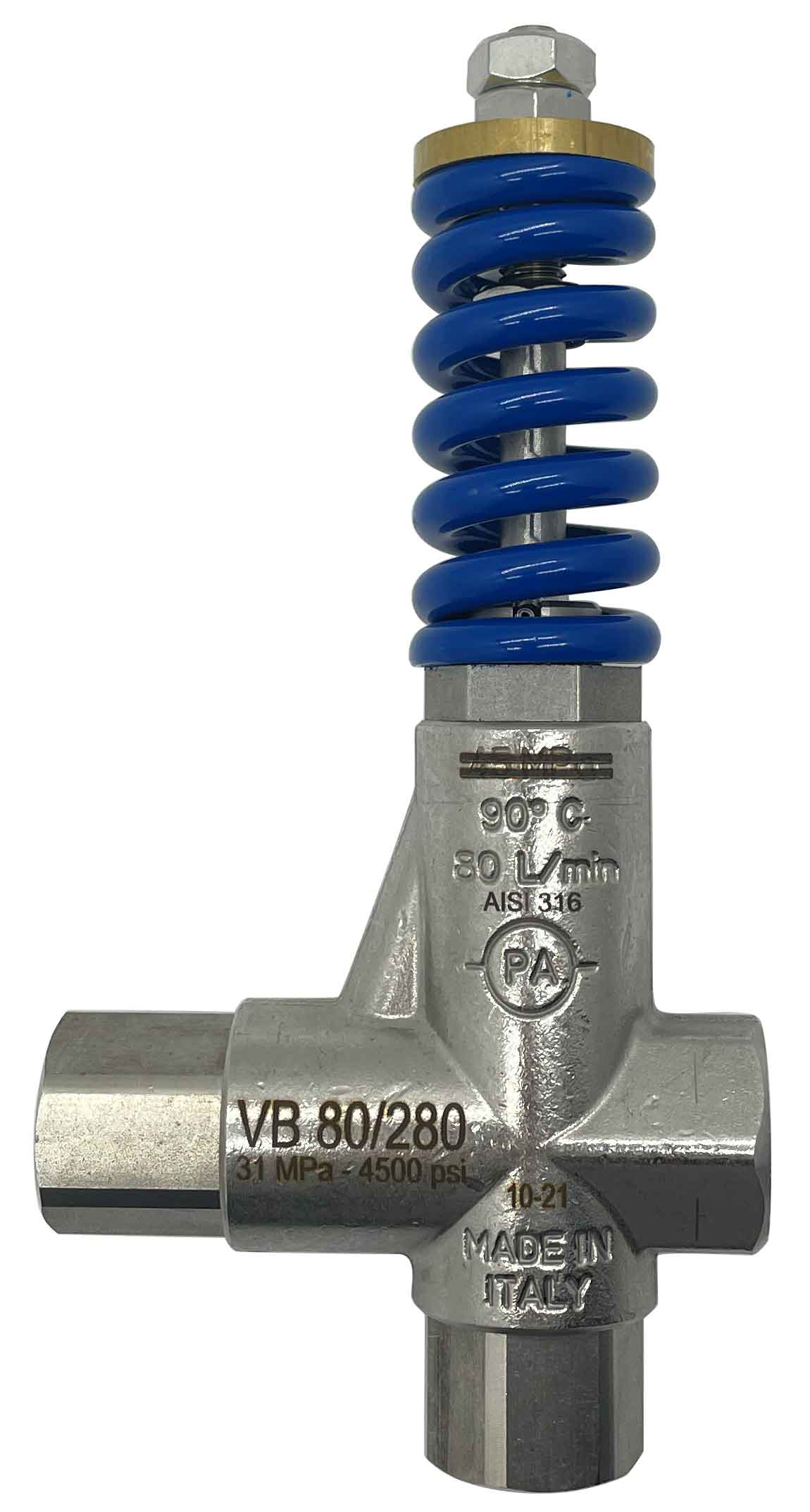

HB80/280
|
MAX. PRESSURE |
310 bar |
||
|
FLOW |
80 L/min |
|||
|
INLET |
G1/2F |
|||
|
OUTLET |
G1/2F |
|||
|
BYPASS |
G1/2F |
|||
|
CODE |
0610026 |
|||
|
HB83
|
MAX. PRESSURE |
880 bar |
||
|
FLOW |
60 L/min |
|||
|
INLET |
G1/2F |
|||
|
OUTLET |
G1/2F |
|||
|
BYPASS |
G1/2F |
|||
|
CODE |
0610029 |
|||
|
HB350
|
MAX. PRESSURE |
390 bar |
||
|
FLOW |
40 L/min |
|||
|
INLET |
ZG3/8M |
|||
|
OUTLET |
G3/8F |
|||
|
BYPASS |
G3/8F |
|||
|
CODE |
0610001 |
|||
|

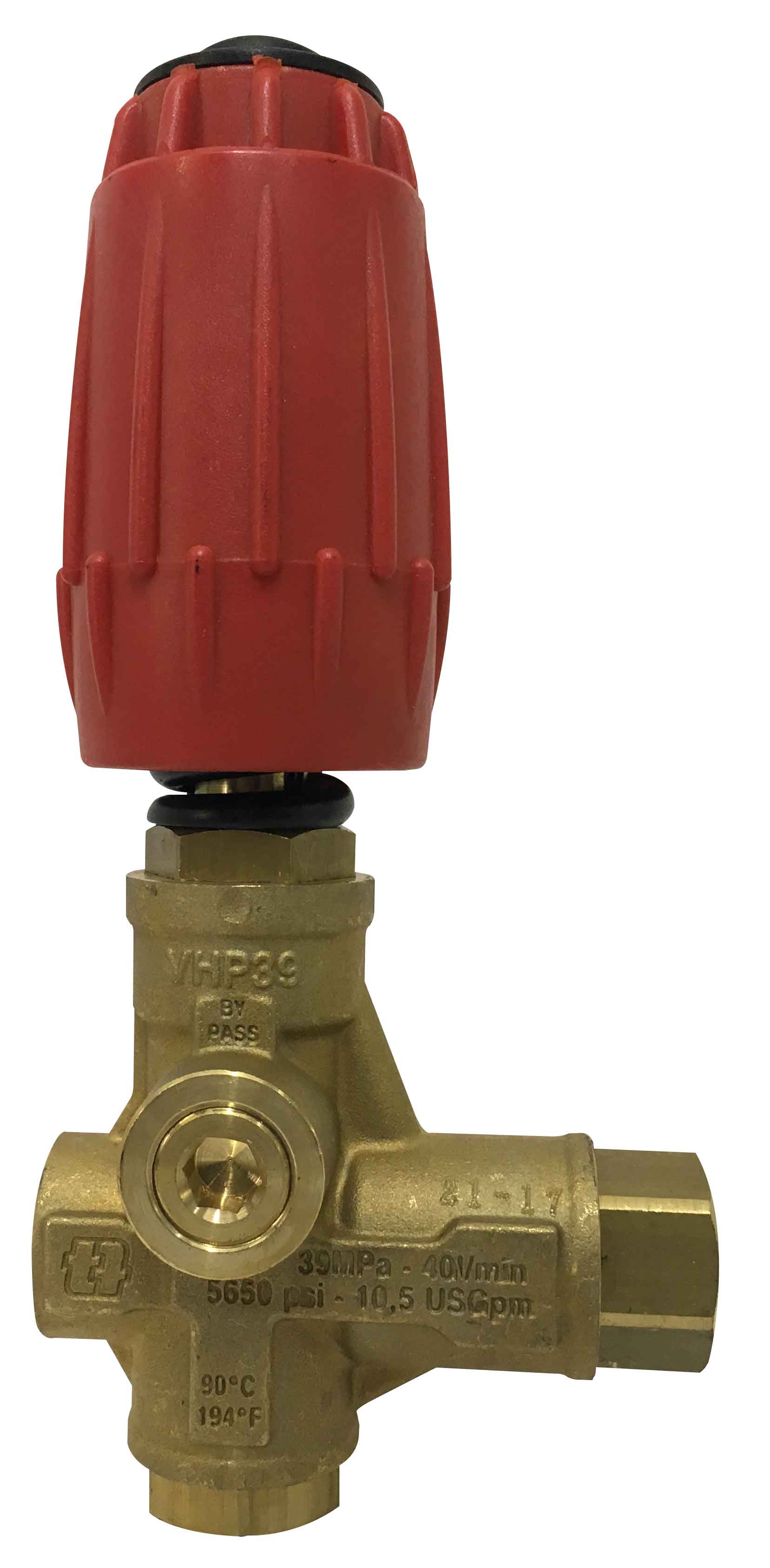

HHP390
|
MAX. PRESSURE |
390 bar |
||
|
FLOW |
40 L/min |
|||
|
INLET |
G3/8F |
|||
|
OUTLET |
G3/8F |
|||
|
BYPASS |
G3/8F |
|||
|
CODE |
0610017 |
|||
|

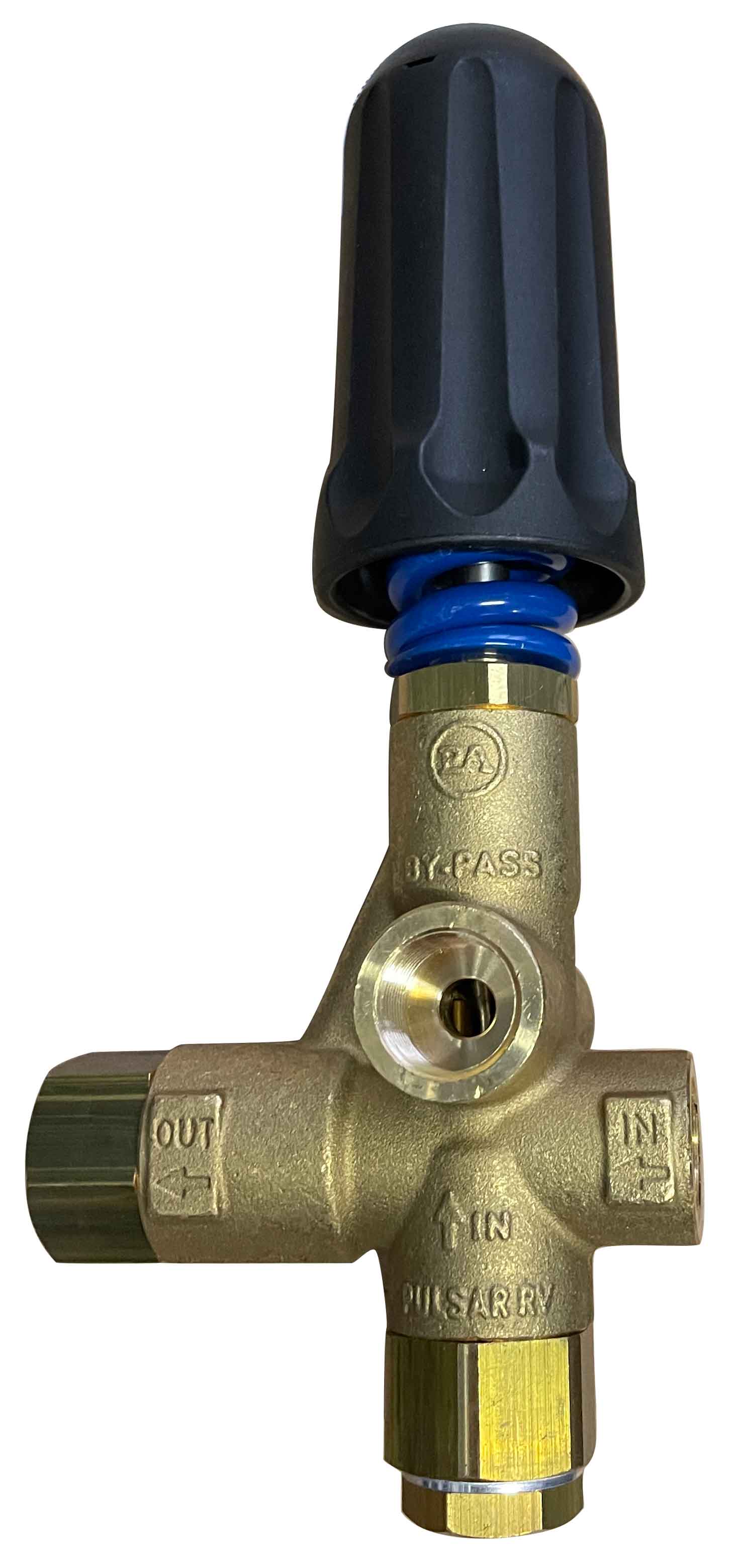

PUL4
|
MAX. PRESSURE |
310 bar |
||
|
FLOW |
40 L/min |
|||
|
INLET |
G3/8F |
|||
|
OUTLET |
G3/8F |
|||
|
BYPASS |
G3/8F |
|||
|
CODE |
0610015 |
|||
|
